UK F35 Cat Ketch sail dimensions?

General Discussion
1

Does anyone have the triangular (corner to corner to corner) dimensions for the wrap around sails for UK F35 Cat Ketch. A sail maker has requested these dimension before he can quote. Measuring the sails in situ is not easy, even on a calm day and am just about to go are sailing for 10 weeks.
Thanks in anticipation.

2

I may be able to help. Iā€™m sailing on another boat but will be at home in 2 days and could look up my records for what they are. Or just measure it. They might be in the owners manual in the group. I uploaded it some considerable time ago

1 Like
3

Hello

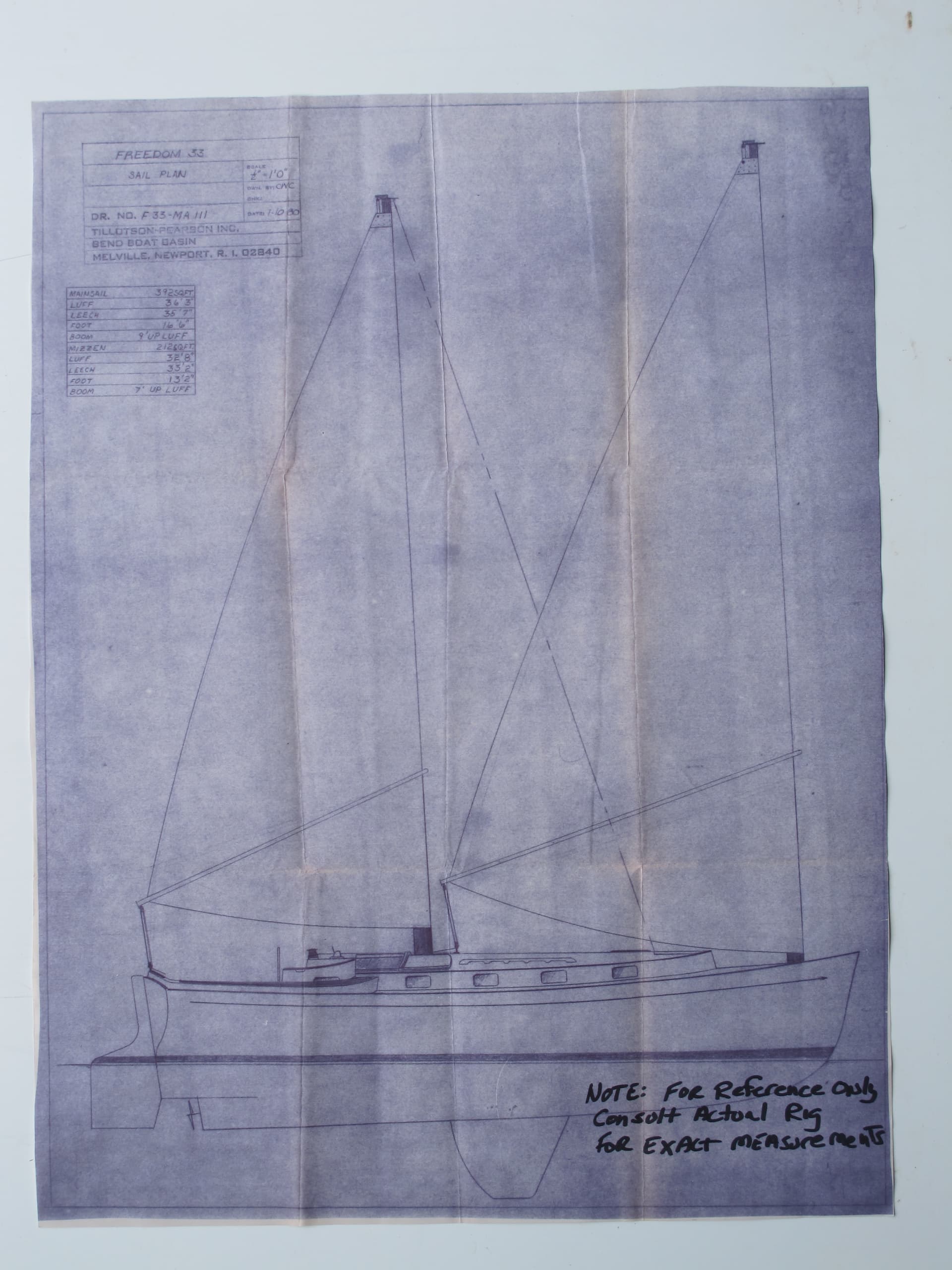

Here is the sail plan for the Freedom 33.
Unfortunately, the sail measurements are not shown.

IMG_1522
IMG_15221920Ɨ2560 295 KB

4

Thanks for posting this drawing. The table in the top left has all the dimensions required. Perfect. Thanks
Kind Regards

Paul

5

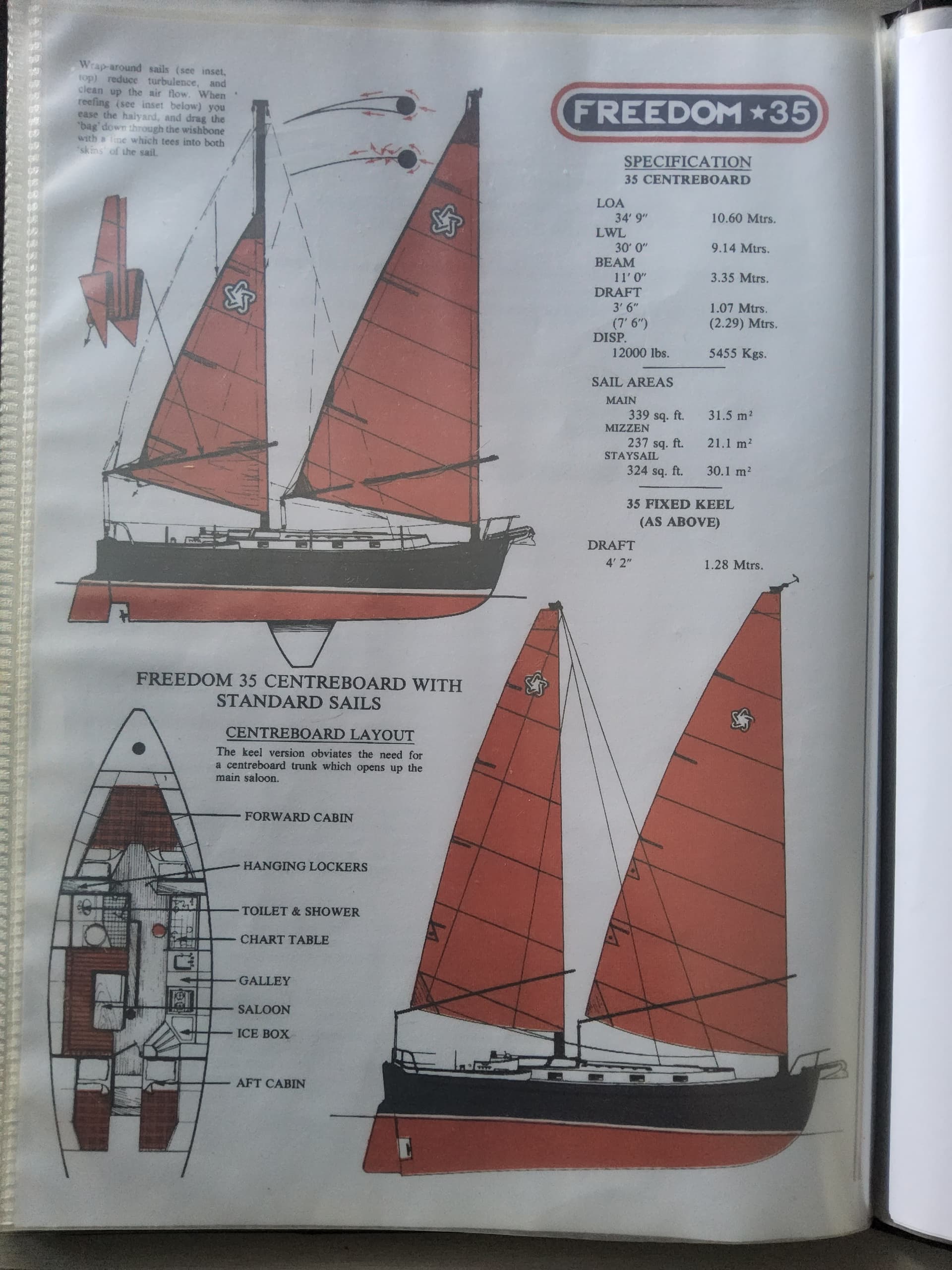

17516462573984050378666261150021
175164625739840503786662611500211920Ɨ2560 318 KB

Got this , not exactly what you are after but hope it helps

6

Thanks for posting. Much appreciated.

7

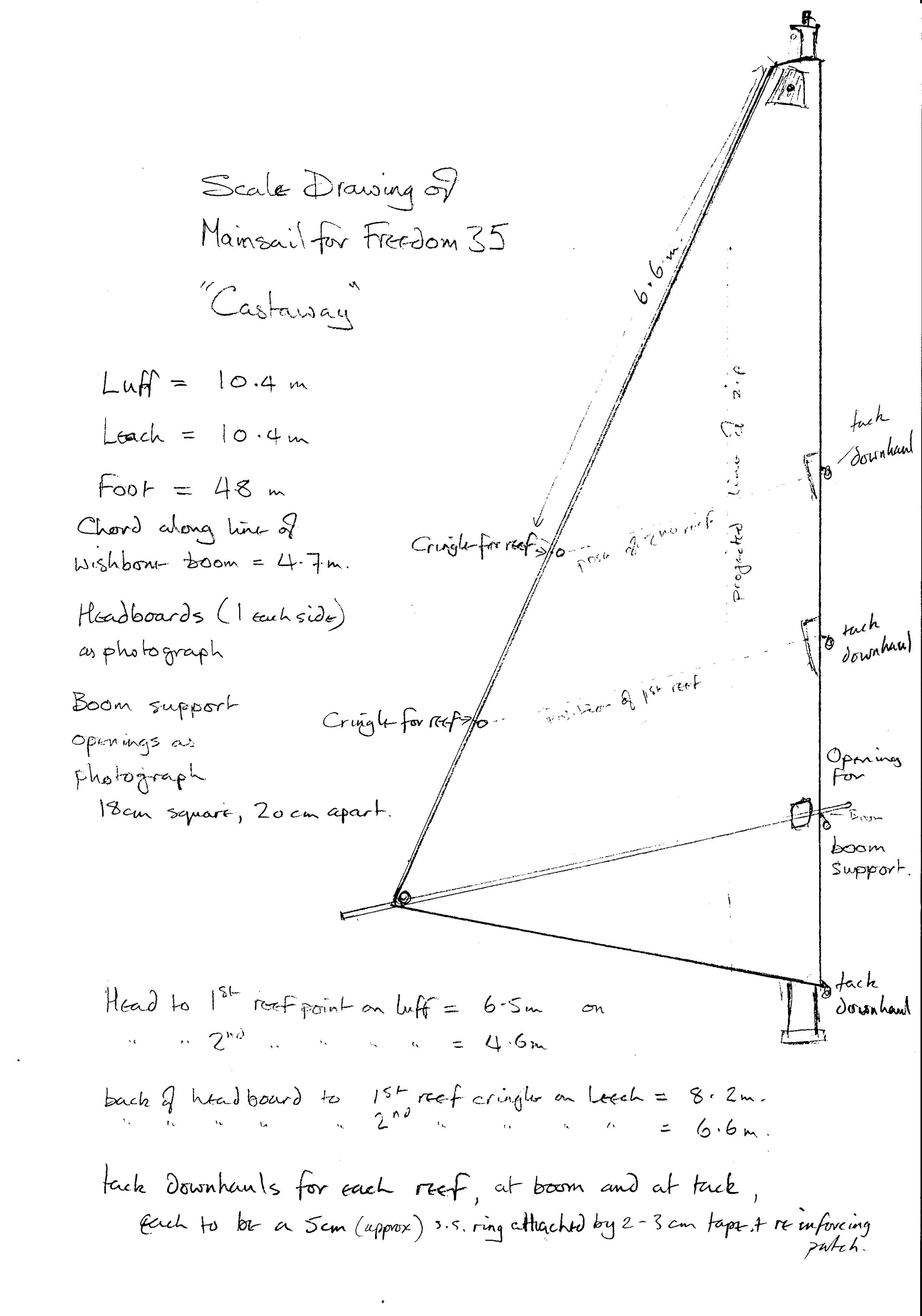

I have found the measurements of my old mainsail, which had the large headboards to give a little more sail area. I put them on a drawing to get a new sail made, but if you go with the original double ply, they will give a reasonable fit. I had a zip pocket put in so that the aft two thirds of the sail was single ply, and thus lighter, but you need to ensure there is a hole to pass the reefing pennants through, since they pass through a block attached to the harness which holds the boom up.



The length of the luff, leech and foot will be standard for this model.

sailF35
sailF351920Ɨ2739 293 KB

Regards,

Gerald
